Products Overview

Wallbox DC Fast Charger

20kW 30kW 40kW 60kW High Performance Smart DC Fast Charging

Contact Us
1

fast chargingdc

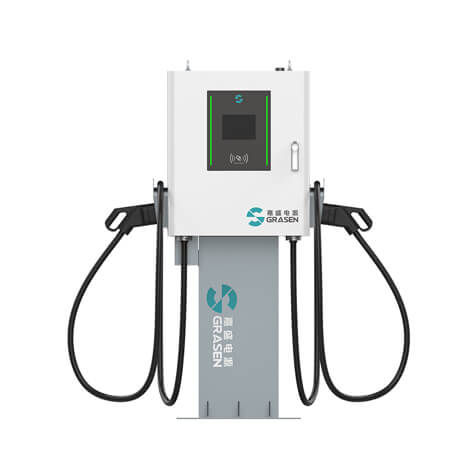

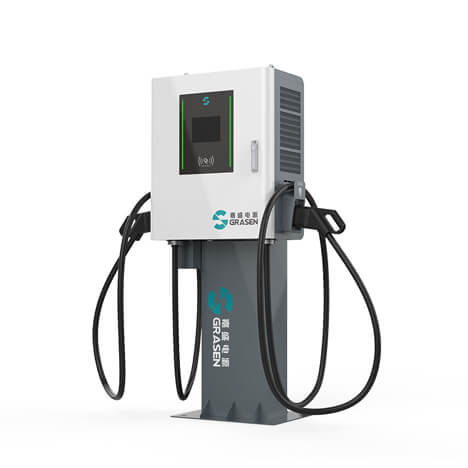

Wallbox DC Fast Charger

20kW/30kW/40kW/60kW smart charging

  • Wall mount or pedestal mount
  • Support two vehicles simultaneously charging
  • SAE Combo, CHAdeMO, or GBT connectors optional
  • OCPP 1.6J & OCPP 2.0

CERTIFICATIONS

Free Quote [email protected]
Grasen-30kW-60kW-Wallbox-DC-Charger-Specifications-Sheet.pdf

IDEAL FOR

Workplaces
Commercial Parking
Automakers
Fleets

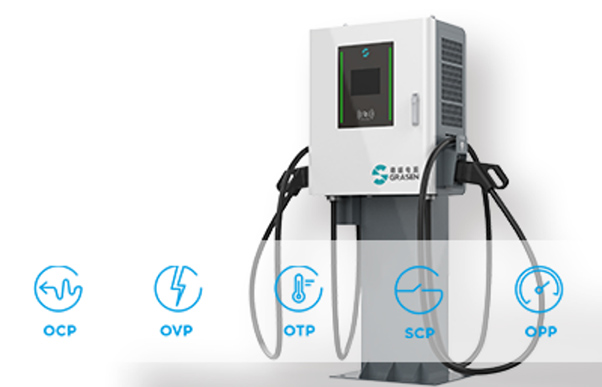

Guaranteed Security

  • IP54 protection rating
  • Waterproof, dust-proof, flame retardant
  • With over temperature, overload, short circuit, leakage, and other protection functions
  • Emergency stop function

Powerful & Compact

  • Max. 100A/200A 1000V output
  • Boost EV batteries to 80% in 30min~60min
  • Over 94% power efficiency for cost-saving operation
  • Easy installation and low maintenance

Easy to Use

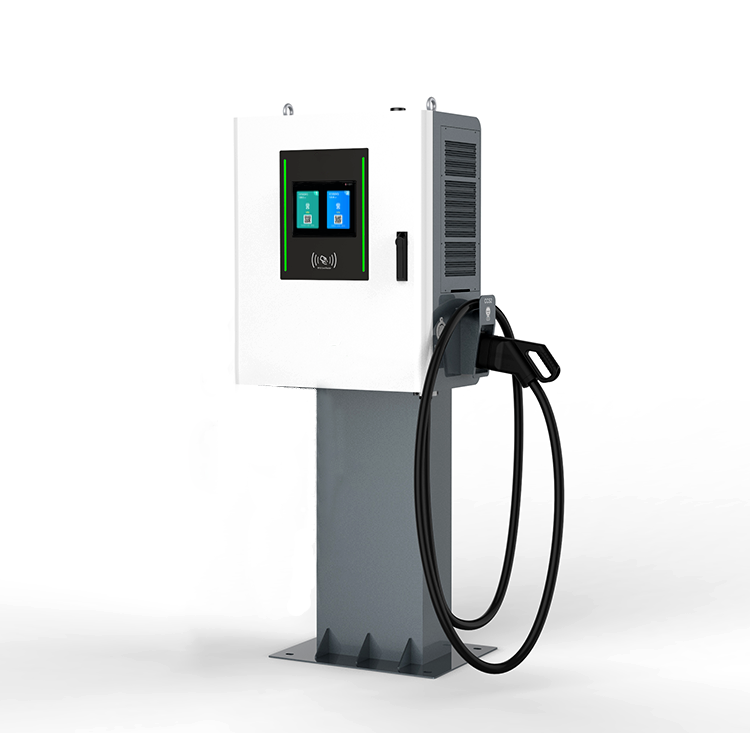

  • 8’’ LCD touch screen with multi-language interface

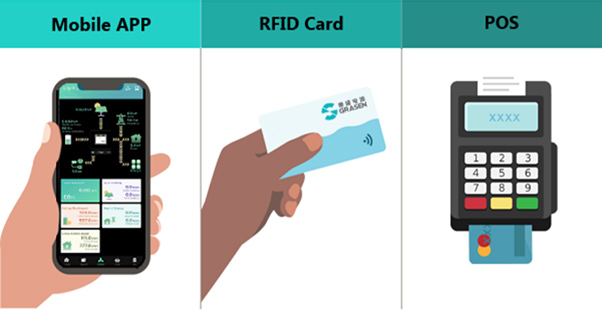

  • Secure authentication and payment through RFID, mobile Apps, or POS
  • Plug & Charge optional

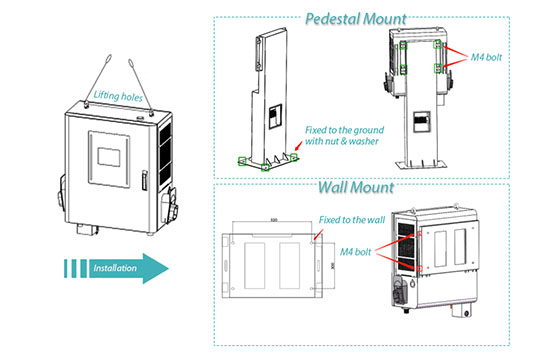

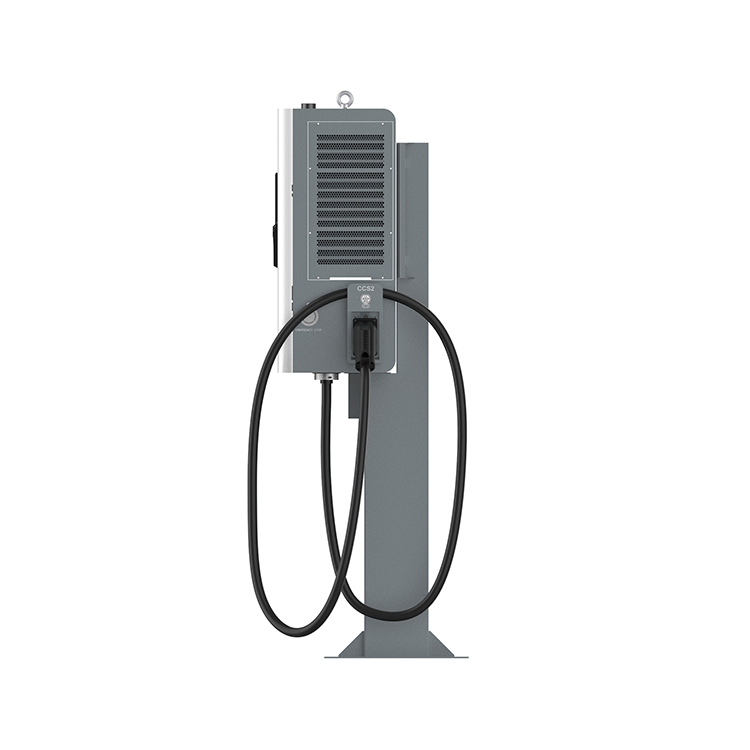

Wall-mount or Pedestal-mount

  • Small footprint to fit any location
  • Robust components for indoor & outdoor
  • Compact size with lightweight
mounting

All-in-one EV charging solution

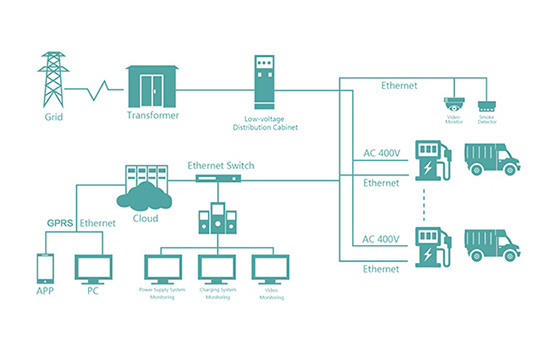

  • Complete EV charging solution

    Grasen supports customers by providing EV charging installation planning and deployment. Upgrades available from electrical panels to software.

  • Training program

    Grasen provides a comprehensive training for our customers. More than a technical installation course, it offers a full overview of the EV charging infrastructures.

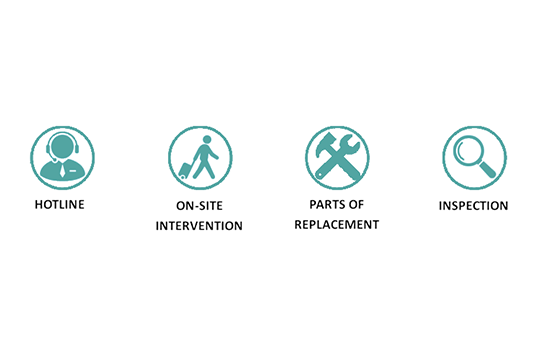

  • After-sales service

    Professional online service guidance within 24 hours for customers who encounter any problems during use.

General Specifications

Power 20kW 40kW 30kW 60KW
Input Voltage 3-phase 400V ±15% AC
Input Voltage Type TN-S (Three Phase Five Wire)
Working Frequency 45~65Hz
Power Factor ≥0.99
Efficiency ≥94%
Rated Voltage CHAdeMO 500Vdc; CCS 750Vdc; GBT 750Vdc CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc
Max. Output Current 66A 132A 100A 200A
Display 8'' LCD Touch Screen
Language Chinese, English, French, German, Spanish, Russian, etc.
Payment Mobile APP/RFID/POS
Network Connection 4G(GSM or CDMA)/Ethernet
Communication Protocols OCPP1.6J or OCPP2.0
Working Temperature -30°C  ~ +55°C
Storage Temperature -35°C  ~ +55°C
Operating Humidity ≤95% Non-Condensing
Protection IP54
Acoustic Noise <60dB
Cooling Method Forced Air-Cooling
Dimension(W x D x H) 690mm*584mm*1686mm (±20mm)
No. of Charging Cable Single Dual Single Dual
Cable Length 5m or 7m
Certificate TUV CE/IEC61851-1/IEC61851-23/IEC61851-21-2

Success Stories

  • Grasen released the 300kW to 420kW ultra-fast charger with Max. output current 400A can charge a vehicle battery up to 80% in just 15 minutes.

    420kW Ultra-fast Charger

  • Most DC chargers across North America are compatible with the CCS and CHAdeMO systems. However, while Tesla uses CHAdeMO stateside, it has switched to CCS (shown above) in Europe.

    dc fast charger for audi

  • This charging station is located in North America. Customer ordered DC fast chargers with GB/T and CCS1 connectors.

    DC Fast Charger for Automaker

  • Most DC chargers across North America are compatible with the CCS and CHAdeMO systems. However, while Tesla uses CHAdeMO stateside, it has switched to CCS (shown above) in Europe.

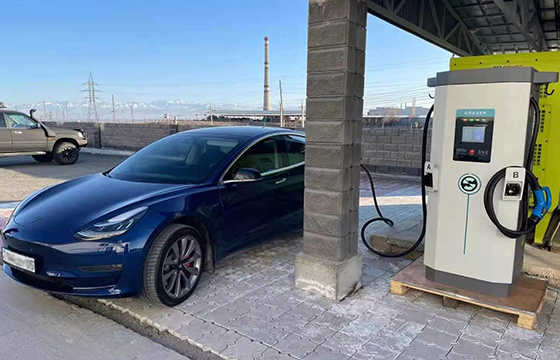

    DC Charging Station for Tesla
