COMMERCIAL CHARGINGac
Charging power 7kW or 22kW optional
CERTIFICATIONS
Complete EV charging solution
Training program
After-sales service
| Power | 7kW | 22kW |
| Input Voltage | Single Phase 230V | Three Phase 400V |
| Output Current | Max. 32A | Max. 32A |
| Working Frequency | 50~60Hz | |

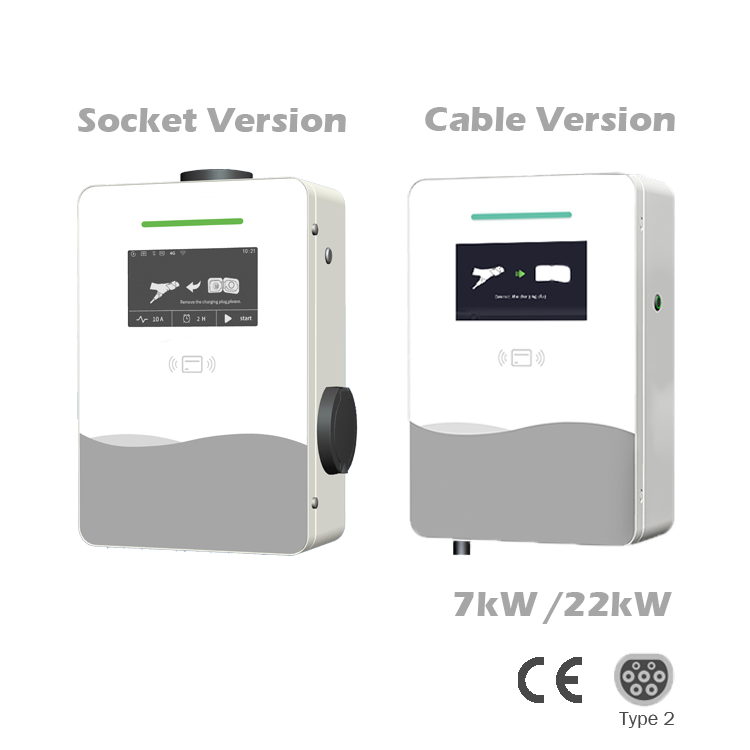

| Connector Type | Type-2 Socket or Type-2 Tethered 5m | |

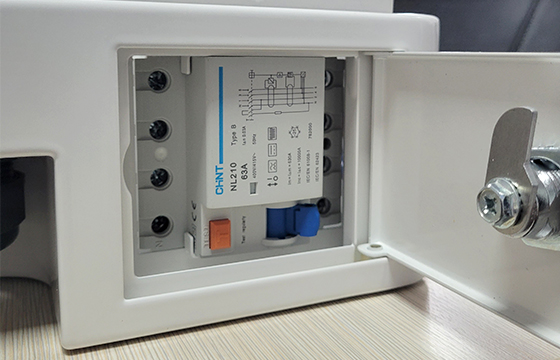

| RCD | RCCB Type-B | |
| Electrical Protection | Over current, Under voltage, Over voltage, Over temperature, Surge protection, Short circuit, Ground fault |
|
| Network Connectivity | Ethernet, WLAN, Cellular | |
| Communication Protocols | OCPP1.6J, OCPP2.0 | |
| Working Temperature | -30 °C ~ 50 °C | |
| Storage Temperature | -40 °C ~ 70 °C | |
| Working Humidity | 5%~95% Non-Condensing | |
| Ingress Protection | IP54 | |
| Indications | Standby(Blue), Charging(Flashing Blue), Fault(Red), Waring(Flash Red) | |
| Buttons | 1 x Physical Button | |

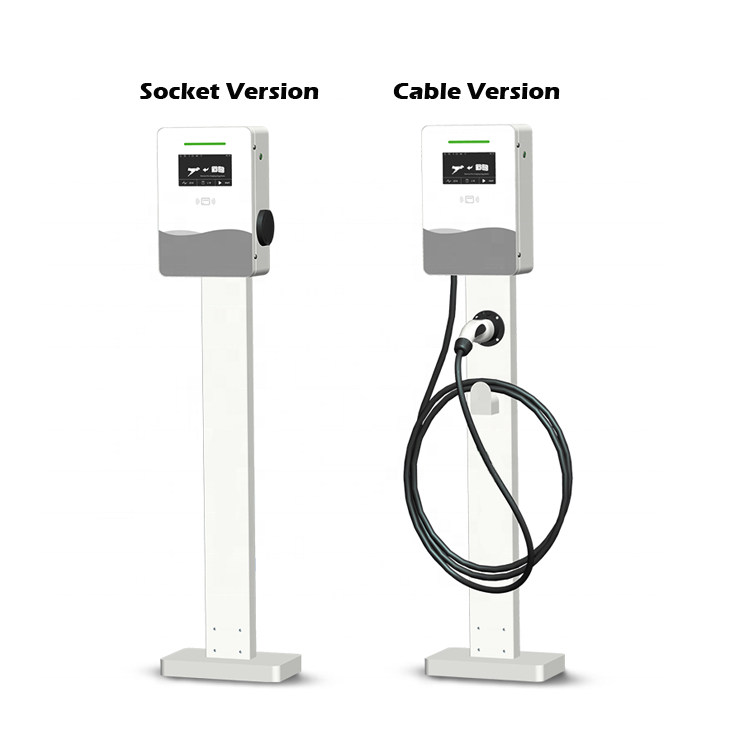

| Mounting Type | Wall Mount (default) / Pedestal Mount (optional accessory) | |
| Dimension (H x W x D, mm) | 400mm*270mm*130mm | |
| Certification | CE, IEC 61851-1, IEC 62196-2 | |
| RFID | ISO 14443 A/B | |
| Display | 7'' LCD | |
| Weight |
9.8Kg Socket Version 12.4Kg Tethered Version |
11.2Kg Socket Version 13.8Kg Tethered Version |
Grasen released the 300kW to 420kW ultra-fast charger with Max. output current 400A can charge a vehicle battery up to 80% in just 15 minutes.
Grasen 22kW Commercial AC Charger for Public Parking Lot has a dual power input system and can charge two vehicles at 22kW at the same time.
