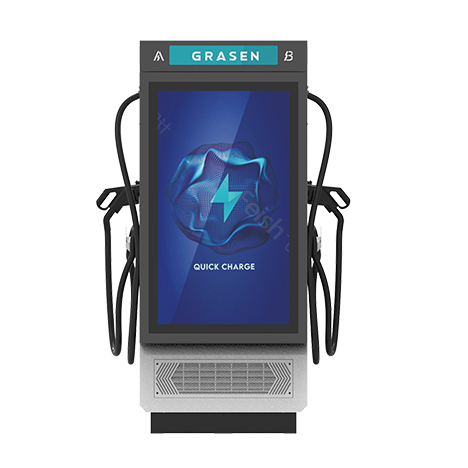

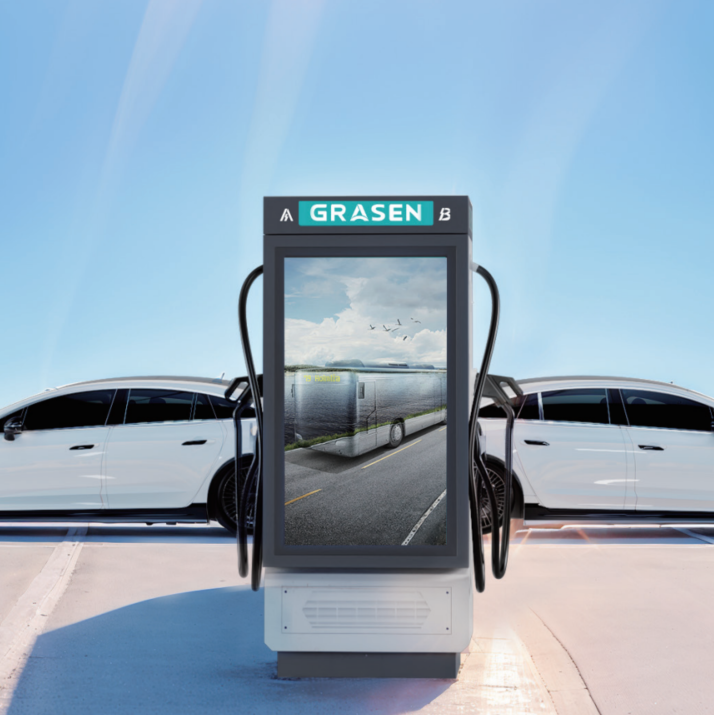

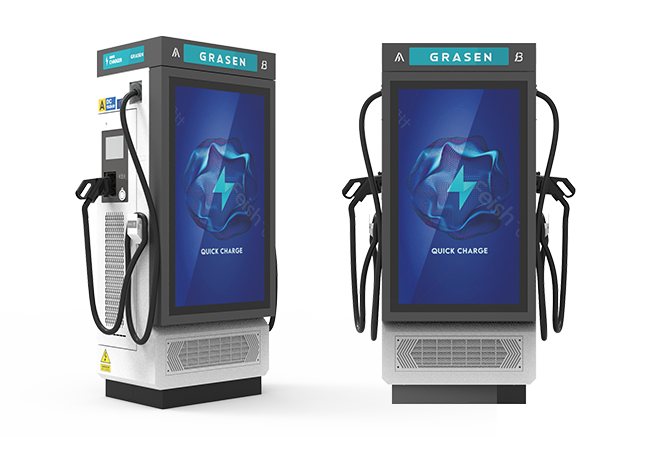

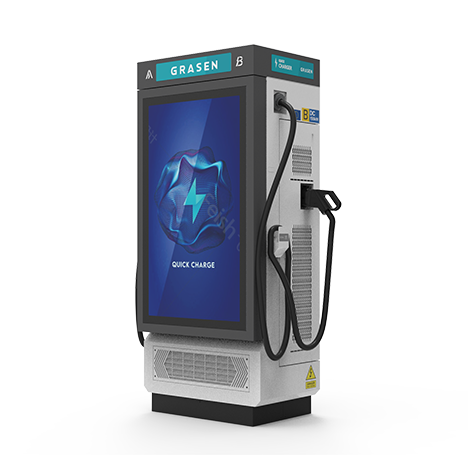

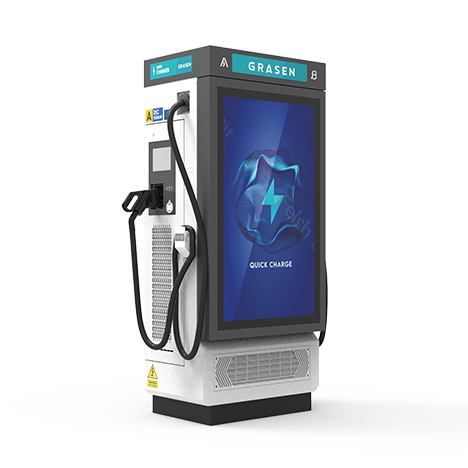

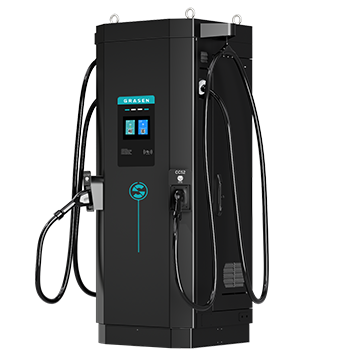

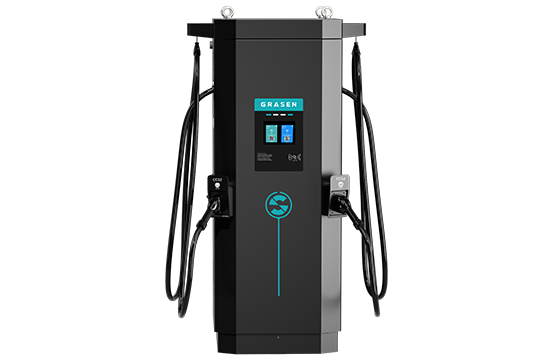

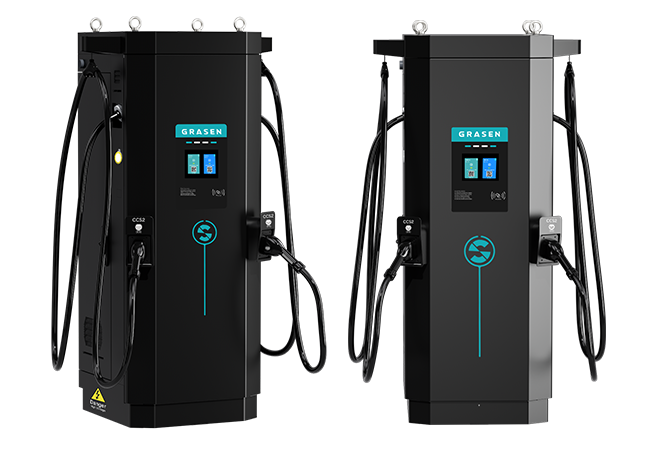

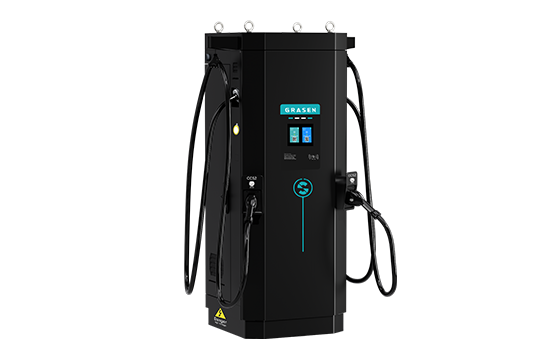

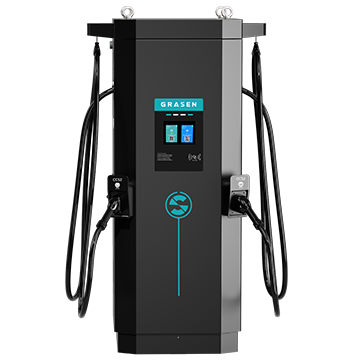

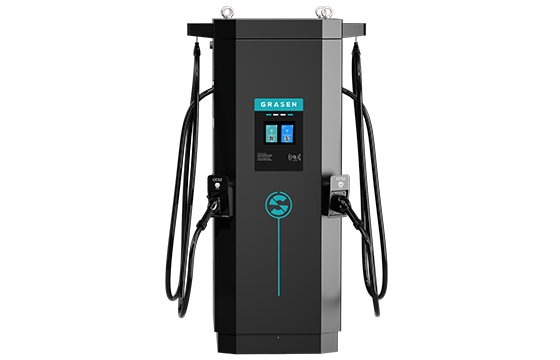

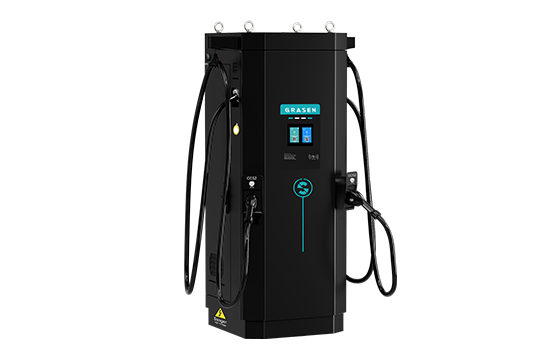

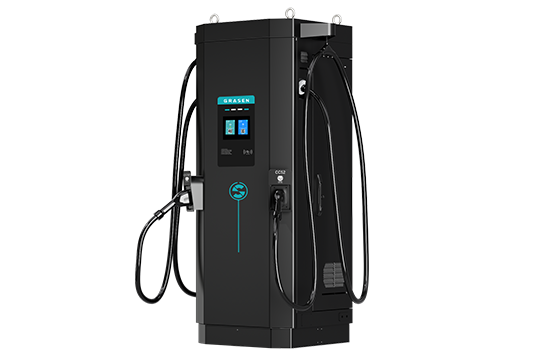

Grasen AD EV Charger S Series

CERTIFICATIONS

Support all charging standards: GB/T, CCS2, CHAdeMO and CCS1
IP54 Protection: moisture-proof, mold-proof, waterproof, dust-proof, and flame-retardant.

IP54 protection rating, waterproof, dust-proof, and corrosion-resistant
Protection against over-voltage, over-temperature, under-voltage, short circuit, leakage, over-current, etc

55’’ LCD advertising screen protected by Tempered Safety Glass, sunlight readable, auto-Brightness.
Easy accessibility: RFID, QR Code, POS Terminal, Remote start , VIN.
Compatible with mobile APP: finding charging stations accessible, navigating, booking, start charging via QR code , real-time charging update.

Complete EV charging solution

Grasen supports customers by providing EV charging installation planning and deployment. Upgrades available from electrical panels to software.
Training program

Grasen provides a comprehensive training for our customers. More than a technical installation course, it offers a full overview of the EV charging infrastructures.
After-sales service

Professional online service guidance within 24 hours for customers who encounter any problems during use.

Item	Power	60kW	90kW	120kW
Input	Input Voltage	400V±15%/440V±15%/480V±15%
	Input Voltage Type	TN-S(Three Phase Five Wire)
	Working Frequency	45~65Hz
	Power Factor	≥0.99
	Efficiency	≥94%
Output	Rated Voltage	CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc
	Max. Output Current	CHAdeMO 125A; CCS 200A; GBT 250A;
Interface	Advertising Screen	55''LCD
	AD Machine Brightness	2000nit
	User Interface Display	8'' LCD Touchscreen
	Language	Chinese/English/Russian(Other languages optional)
	Payment	Mobile APP/RFID/POS(Optional)
Communication	Network Connection	4G(GSM or CDMA)/Ethernet
	Communication Protocols	OCPP1.6J
Working Environment	Working Temperature	-30°C ~ +50°C
	Storage Temperature	-35°C ~ +55°C
	Operating Humidity	≤95% Non-Condensing
	Protection	IP54
	Acoustic Noise	<60dB
	Cooling Method	Forced Air-Cooling
Mechanical	Dimension(W x D x H)	870mm610mm2037mm
	Cable Length	5m or 7m
