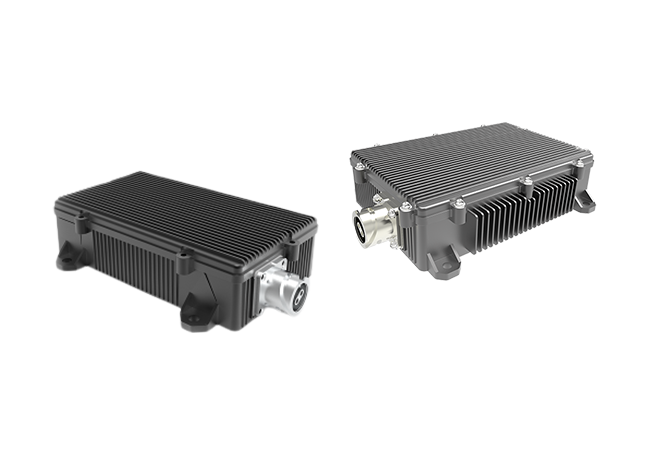

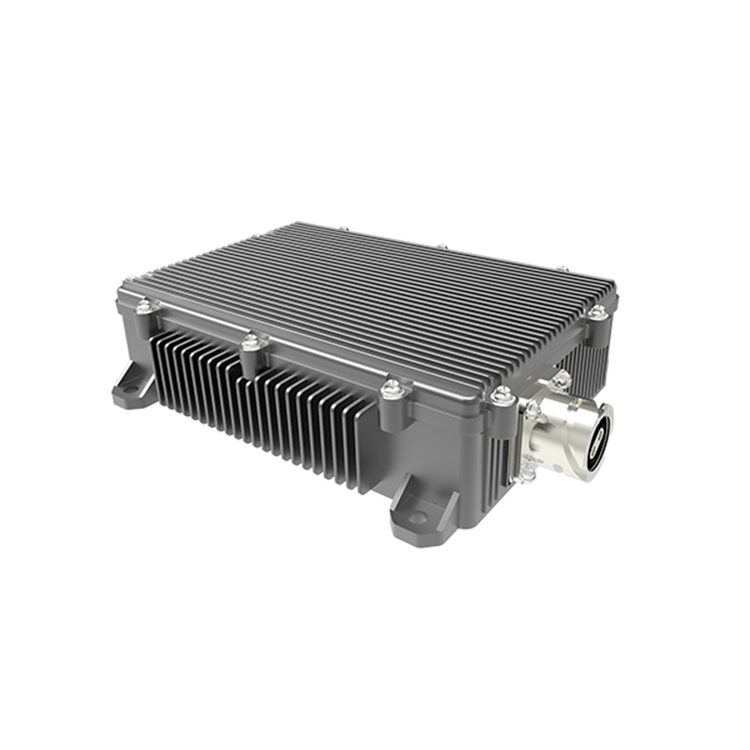

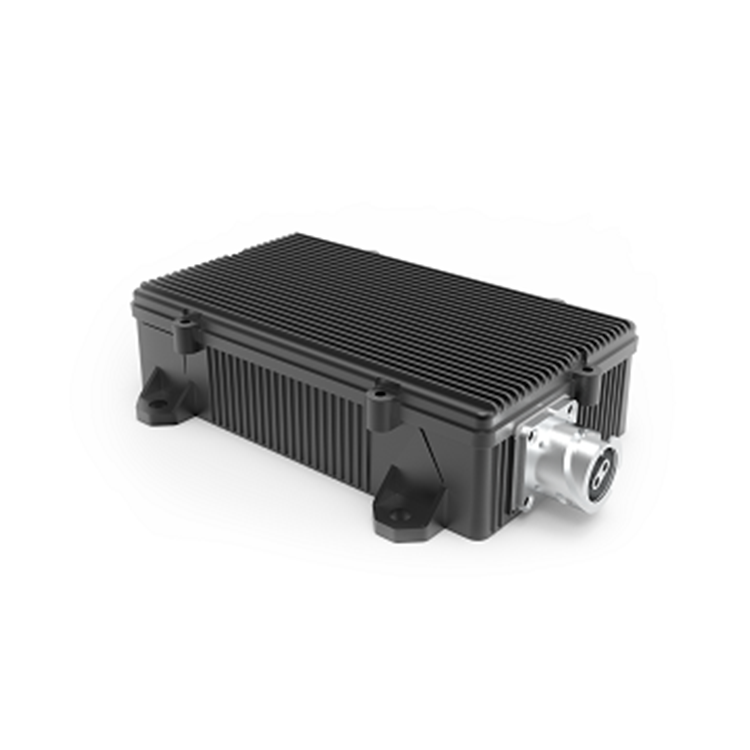

COMMERCIAL BMS12V
Output 300W 12V, Input range 200~800VDC
CERTIFICATIONS
| Item | Model | 300W 12V | 300W 24V |
| Input | Input Voltage | 540VDC | |
| Input Voltage Range | 200VDC~800VDC | ||
| Max Input Current | <2A | ||
| Sleep Power Loss | ≤60mW | ||
| Output | Output Voltage | 12V±0.5VDC | 24V±0.5VDC |
| Output Current Range | 0~25A | 0~12.5A | |
| Output Power | 300W | ||
| Full Load Efficiency | ≥ 90% | ≥ 92% | |
| Temperature Coefficient | ≤ ±0.02% | ||
| Mechanical | Dimension(W x D x H) | 204mm*143mm*46mm | 204.8mm*129mm*45mm |
| Protection | Over-voltage, Under-voltage, Over-current, Overheating, Output short circuit | ||
Low-voltage DC power supply

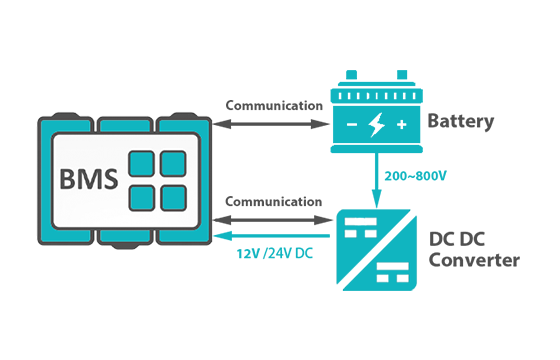

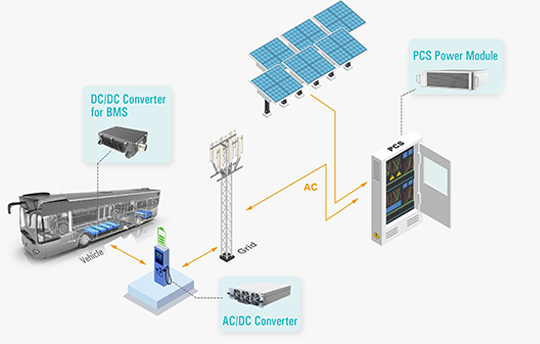

Switching power supply for 12V/24V BMS
Other LV power supply electrical equipment
Grasen released the 300kW to 420kW ultra-fast charger with Max. output current 400A can charge a vehicle battery up to 80% in just 15 minutes.
Most DC chargers across North America are compatible with the CCS and CHAdeMO systems. However, while Tesla uses CHAdeMO stateside, it has switched to CCS (shown above) in Europe.
This charging station is located in North America. Customer ordered DC fast chargers with GB/T and CCS1 connectors.
Most DC chargers across North America are compatible with the CCS and CHAdeMO systems. However, while Tesla uses CHAdeMO stateside, it has switched to CCS (shown above) in Europe.
